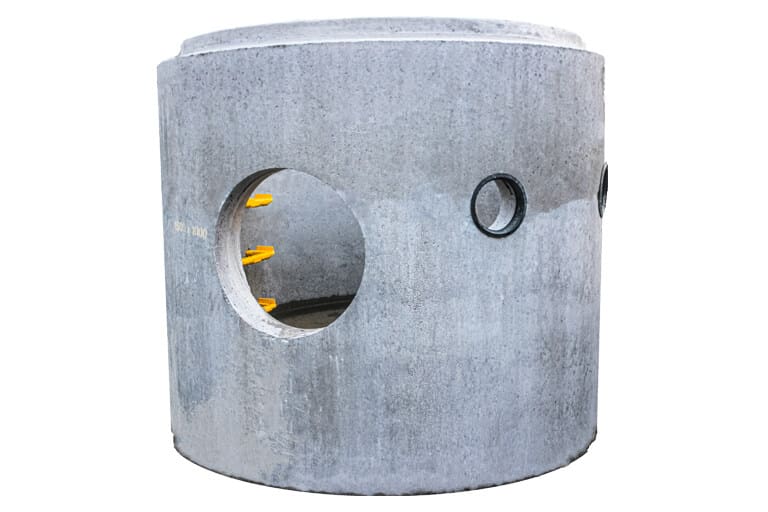

Catchpits are a precast concrete drainage product that are recommended for use as a filter and collector in land drainage systems that do not make use of any sort of geo-membrane.

A Catchpit is essentially an empty chamber with an inlet pipe and an outlet pipe set at a level above the floor of the pit.  Any sediment carried by the system settles out whilst in the Catch-Pit, from where it can be periodically pumped out or removed.

Instead of building a Catchpit consider buying a Tracey Concrete Catchpit saving yourself time and money.

Tracey Concrete Catchpits effectively provide a sealed sump manhole fitted with connector seals which can be used to connect to the following types of pipe:Tracey Concrete, uPVC, Twinwall, Clay & Ductile Iron

Tracey Concrete manufactures DN900 – DN3600 Catchpit in accordance with BSEN 1917 & BS5911.  Tracey Concrete Catchpits can be fitted with manhole rungs or ladder steps and have an invert level of 300mm for inlet and outlet pipes.  Non standard invert levels are available on request.  Tracey Concrete manhole rings may be placed directly on top of the catchpits & constructed as normal.


Related Products

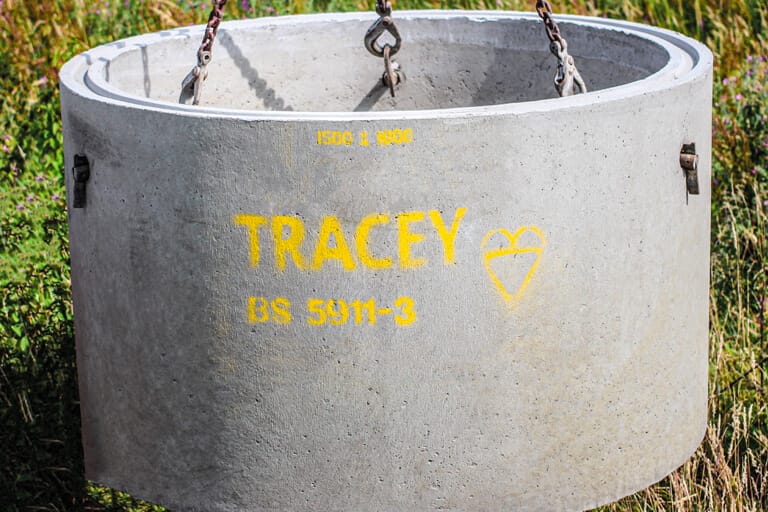

Manhole Rings

Perfect Base™

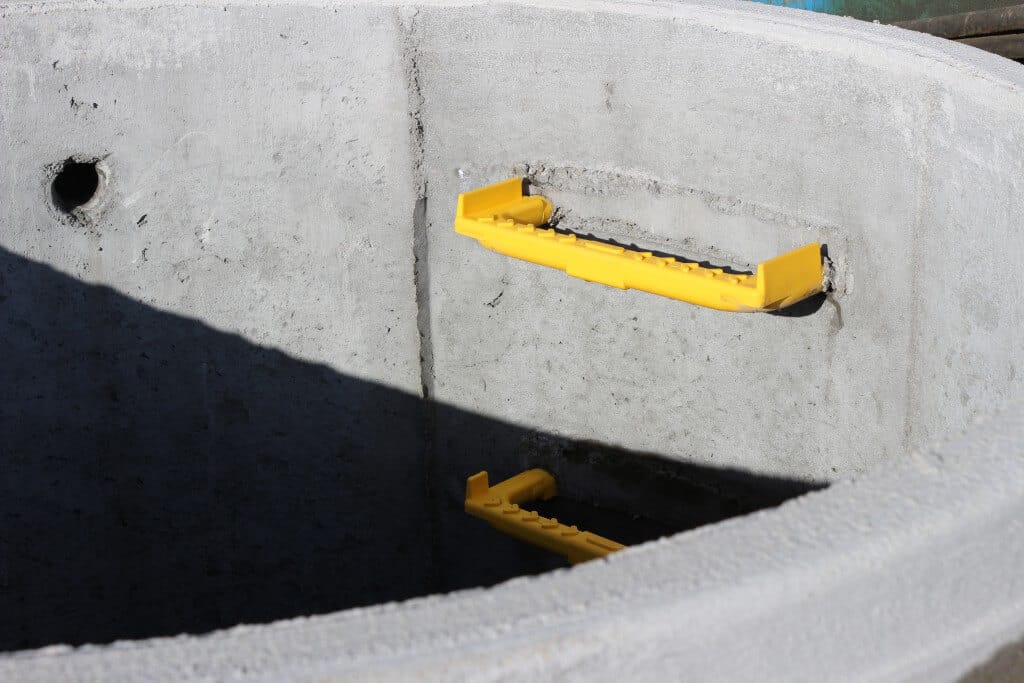

Drainage Accessories

Related Projects

Jaguar Land Rover Headquarters

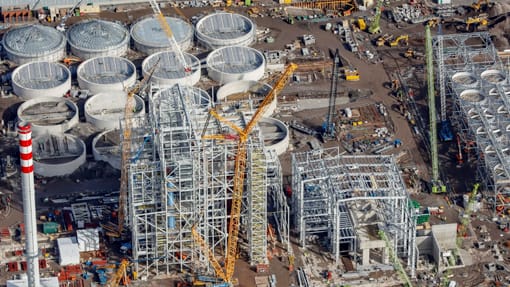

TEESRep BioMass Plant – MGT Power
