Caisson Rings

Tracey Concrete Ltd manufacture a range of Caisson Chambers sizes

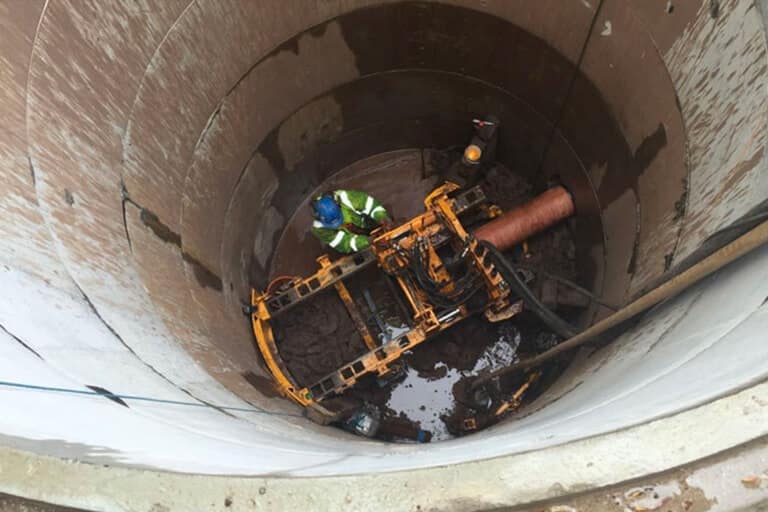

These can be used to provide economic and rapidly constructed shafts. Our Caisson Chamber sinking system was originally designed for micro-tunnelling, but is more widely used in the construction of pumping stations, wet wells, & manholes, particularly in difficult ground conditions.

Base Ring

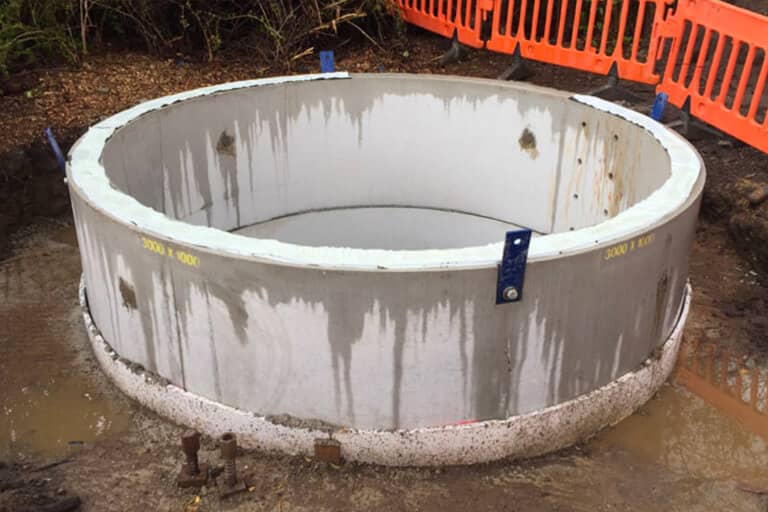

The Base Ring is a standard ring without the tongue part of the joint as it has to sit flat on the surface of the cutting shoe.  The Base Ring with shoe fitted, is manufactured at a standard depth of 1000, but can be produced 500 or 750 high, on requested.

Riser Ring

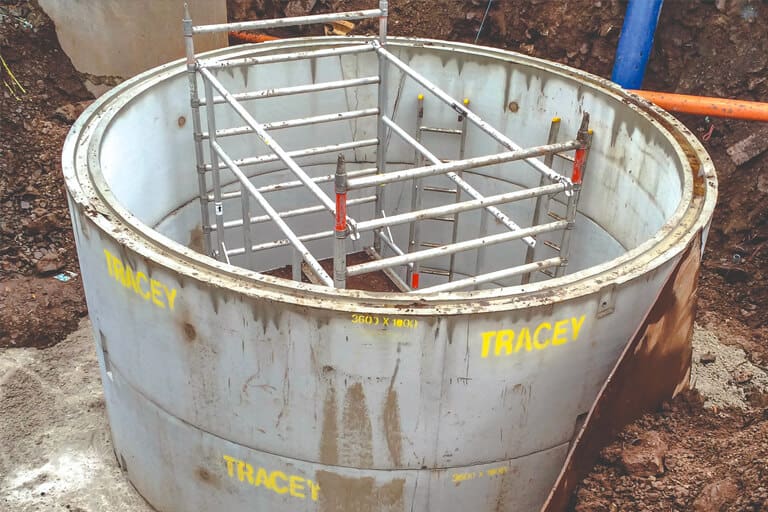

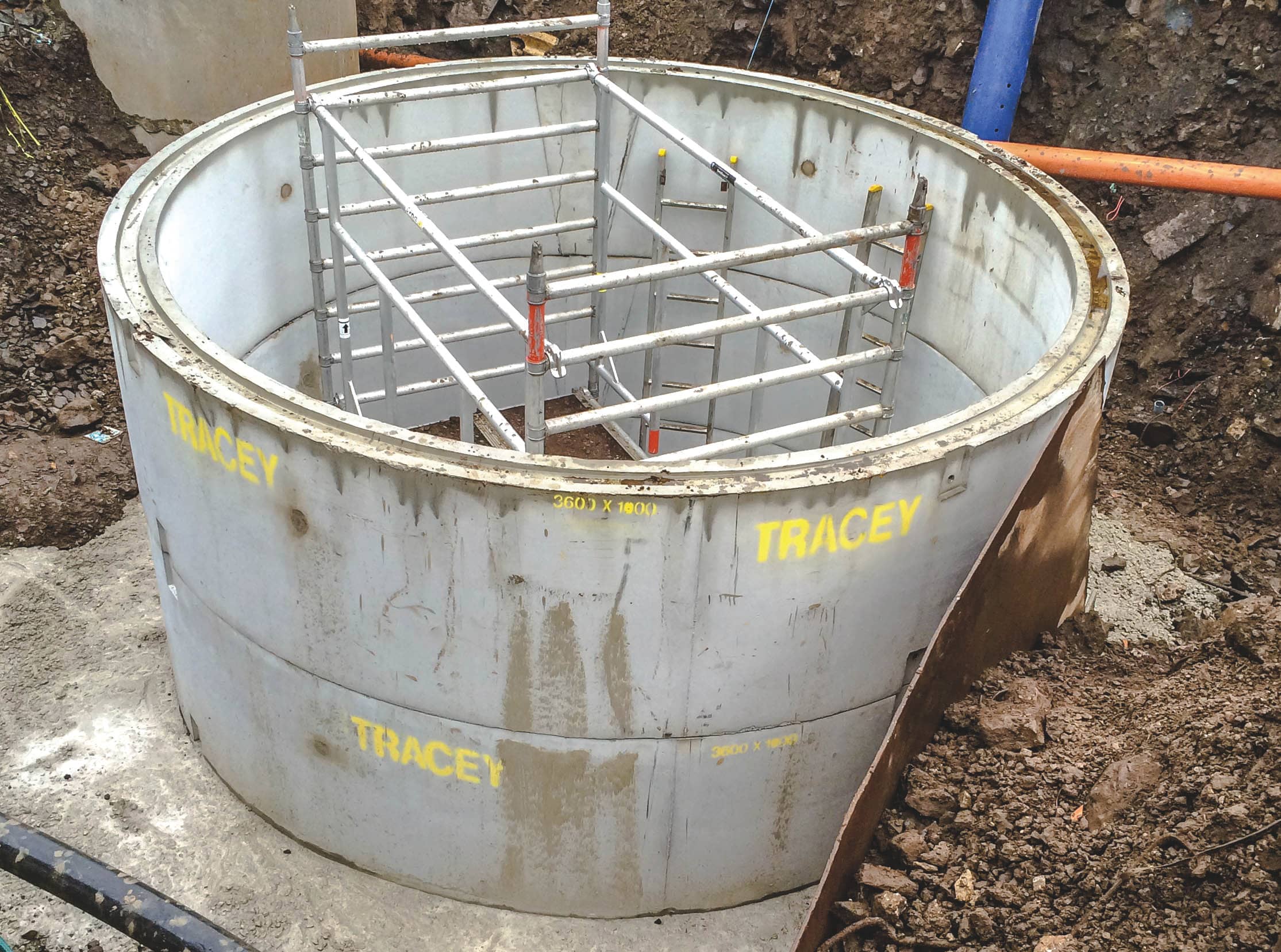

Riser rings are standard rings with fixing inserts cast in around the top and bottom of the outside wall, the rings are fitted on top of each other and bolted with specially designed plates, washers & bolts.

Advantages

Faster, cleaner & more accurate construction

Rings are bolted together with plates for maximum strength

Caisson Chambers can be used for jacking pipes

Bespoke cutting shoes can be supplied to aid sinking

Related Products

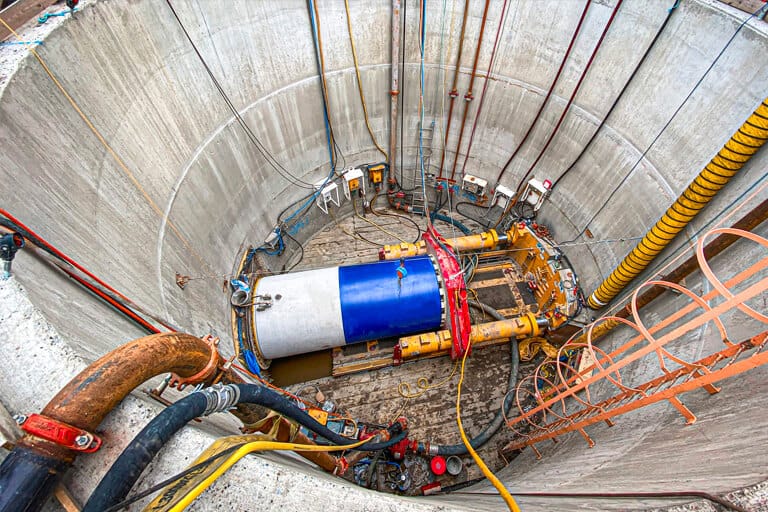

Jacking Pipes

Manhole Rings

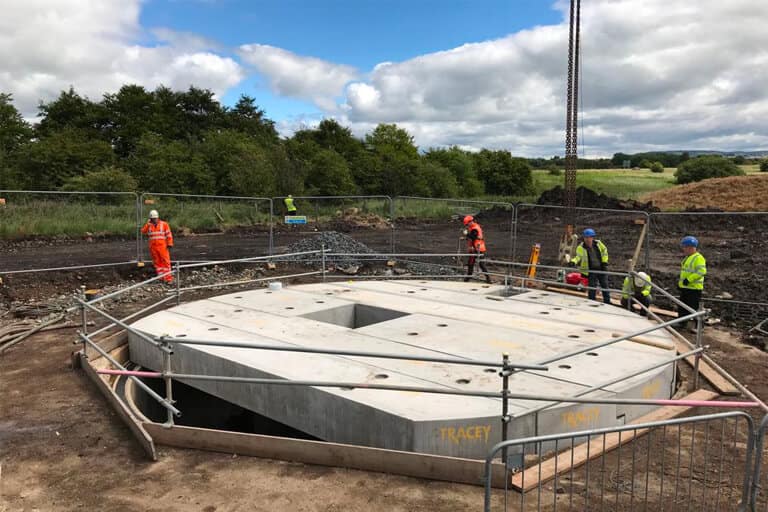

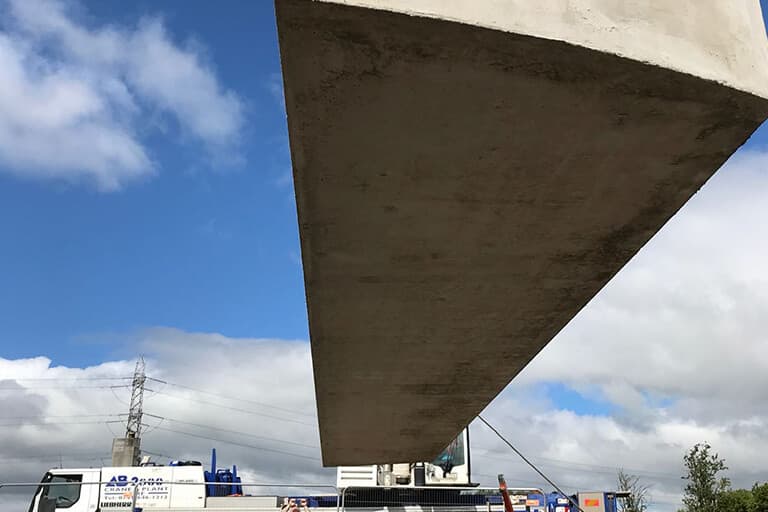

Shaft Slabs

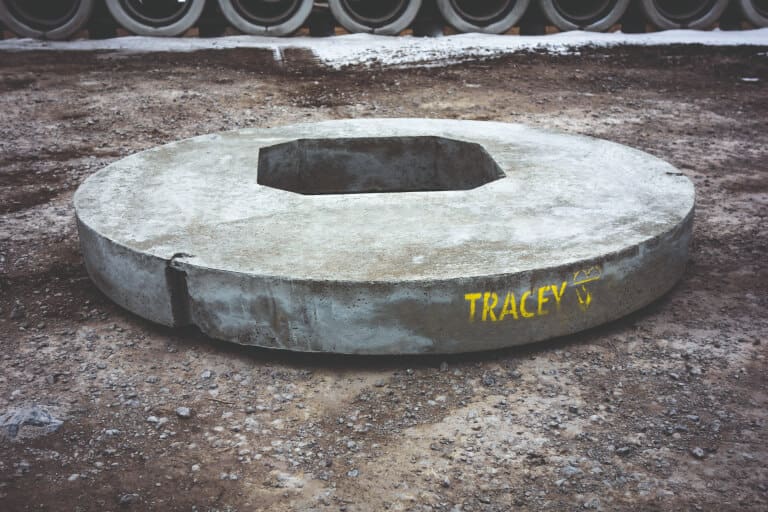

Manhole Coverslabs

Brochure

Related Projects

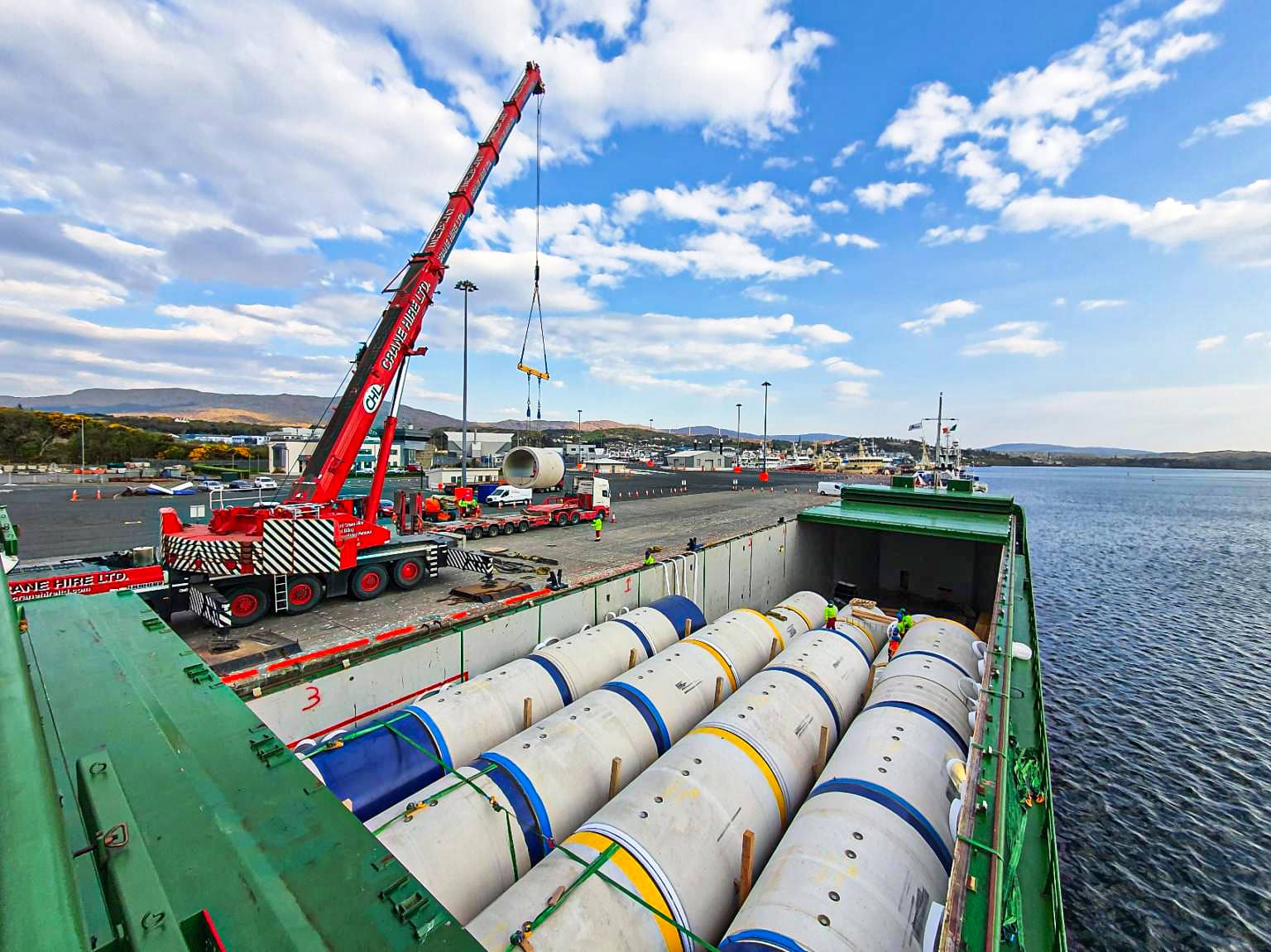

Super Sewer

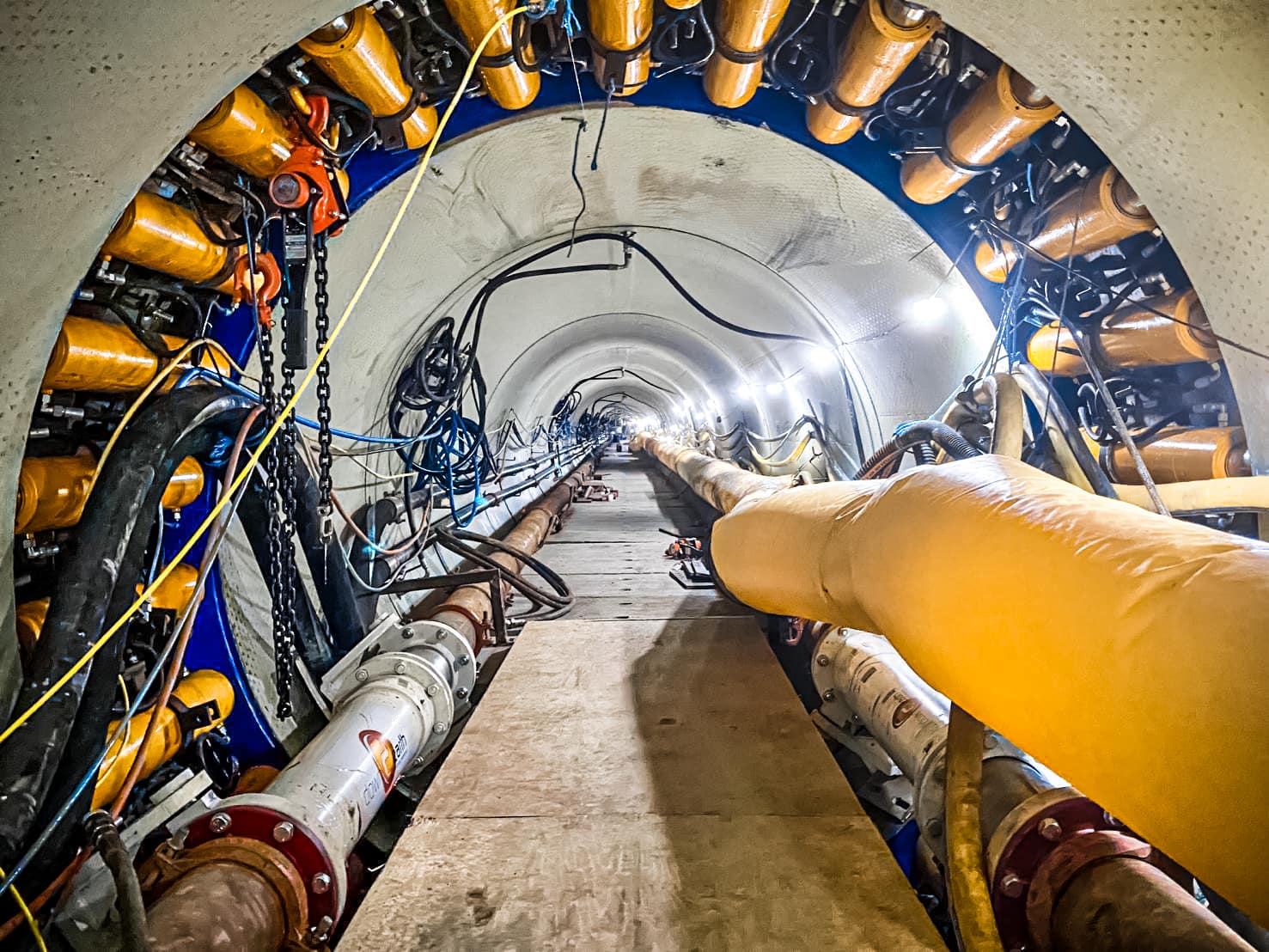

Finland
